Humidity (RH) 93±3% IP66 12KG Weight 10KM 10000m Long Range Detection Distance Portable Drone Detector Detection
Usage Instructions
Device Deployment and Usage
1. Choose a Suitable Environment: Select an open outdoor area, typically high ground or a building rooftop.
2. Antenna Connection: Connect the receiving frequency band antennas to the corresponding interfaces on the radio processing unit.
3. Power and Network Connection:
- Network Connection: Use optical fiber or standard network cable to connect the radio processing unit to the host terminal via TCP/IP interface; or connect to a wireless network or 4G network.
- Power Connection: The device has a built-in battery for direct power; 220V AC input can be connected via fixed power supply or UPS power supply.
System Operation
1. Start the System: After powering on, the display interface automatically starts the UAV defense system and enters the main interface.
2. Passive Detection: The system automatically alarms upon detecting a UAV, displaying frequency band information and approximate location.

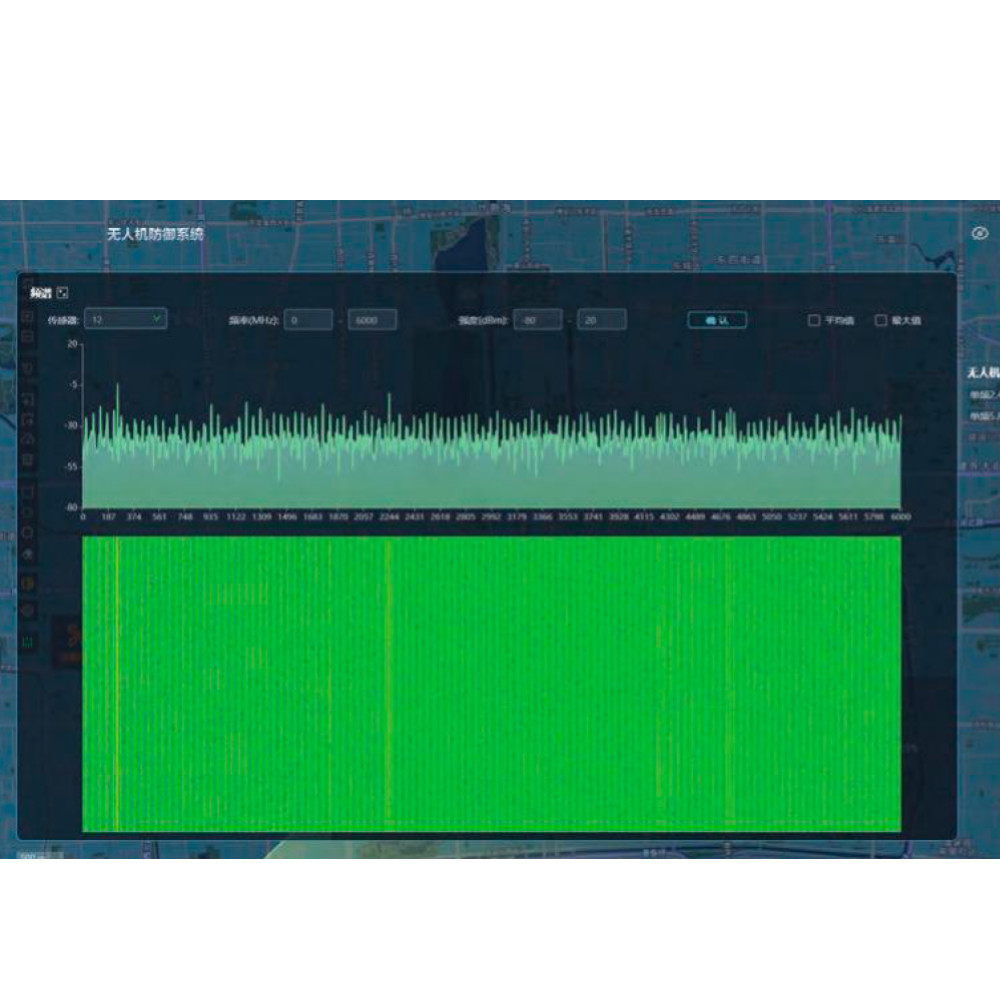

3. Full Frequency Scanning: Enables full frequency signal scanning detection for DIY UAV signals within 70MHz-6000MHz range.
4. Whitelist Setup: Add detected UAVs to the whitelist through the menu.
5. View Historical Events: View UAV historical event list, including discovery time, duration, model, and identification code.
6. View Statistical Reports: View UAV incident statistics, including the number of UAVs discovered, common aircraft models, and invasion times.
7. AI Learning: Intelligent recognition learning for unknown UAVs.
8. View Device Status: Monitor the status of controllers, computing engines, and sensors through device management.
Technical Specifications
| Environmental and Physical Parameters | Value |
| Operating Temperature | -20°C to +65°C |
| Humidity | Humidity (RH) 93±3%Humidity (RH) 93±3% |
| Atmospheric Pressure | 86kPa - 106kPa |
| Total Power Consumption | ≤50W |
| Power Supply | Main power or built-in power supply |
| Rated Voltage | 220V±22V AC 50Hz/60Hz |
| Built-in Power Supply | DC 12V 54AH |
| Dimensions | 470mm x 357mm x 176mm |
| Weight | 12KG |
| Protection Level | IP66 |
| Continuous Operation Time | 10 hours standby after fully charged, continuous operation with mains power |
| Radio Characteristics | Value |
| Supported Frequency Bands | 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Airspace | 360° full airspace |
| Detection Distance | >3km (optional 5km/10km depending on environment) |
| Environmental Electromagnetic Wave Radiation Intensity | Meets GB8702-2014 requirements |
| Reconnaissance Mode | Panoramic scan, channel scan |
Main Features
- Passive Detection: Detects signals without emitting any, identifying drone models and electronic ID fingerprints.
- Accurate Identification: Distinguishes between different drones of the same brand, model, and frequency band.
- Precise Positioning: Indicates UAV target positions accurately.
- Blacklist/Whitelist Management: Supports one-click marking of black and white lists.
- Detection Coverage: Supports DJI and other mainstream brands, covering over 98% of market models.
- Multi-Target Tracking: Tracks multiple drones simultaneously, displaying flight trajectories in different colors.
- Intrusion Alarm: Issues audible and visual alarms upon detecting drone intrusion.
- Pilot Positioning: Determines the location of the drone operator.
- Intelligent Platform: Equipped with a professional display and command system, supporting both unattended and manual modes.
Product Overview
The EXLZ-TCX1 Portable UAV Detection and Positioning System uses advanced cognitive radio protocols (CRPC) and message-level protocol analysis technology to detect, identify, and track civilian drones. This system provides real-time location and trajectory tracking, making it ideal for airports, prisons, industrial facilities, national defense, public security, and major event venues.
Product Tags:
|
|
Waterproof 10000m Portable Drone Detector Handheld Drone Detection Solutions Images
|
